YMCK releases Magical FDS Plug, a FREE FDS sound chip synth

YMCK has released Magical FDS Plug, a free software synthesizer that emulates the sound of the FDS sound chip.

This is an absolute blast from the past for me, because YMCK’s Magical 8bit Plug was one of the first plugins I ever installed.

I was deep into chiptune music back then, and I was using it in MuLab, the first DAW I ever used. And wow, writing that now makes me feel so old.

It was the early days of VST plugins for me, and it is a little surreal to see something new from the developer of Magical 8bit Plug after all this time.

Another interesting part is that Yokemura from YMCK says the plugin was developed with help from AI tools. He explains that the FDS spec had always felt too complex and time-consuming to turn into working code, but recent AI tools finally helped push the project over the line.

I recently wrote about vibe-coded plugins, and this is a good example of the hopeful side of that discussion. In the right hands, it can obviously be used to send some good plugins our way.

Magical FDS Plug reproduces the sound architecture of the Disk System (FDS) sound chip. The original design is unusual because it uses a 64-sample waveform memory as the carrier, modulated by a separate 32-step instruction sequence.

YMCK built the plugin with a more logical editing workflow, so you can create the carrier waveform using additive synthesis, preset waveforms, pulse waveform editing, or freehand drawing across 64 points.

The additive mode works a bit like a drawbar organ, with eight sliders for mixing harmonics. Preset waveforms include triangle, sawtooth, and sine options, while pulse mode shapes the square wave with pulse width values from 1 to 63.

The modulator section includes six presets, covering triangle, sawtooth, sine, square, ramp up, and ramp down shapes. There is also a custom mode where you can enter a 32-step opcode sequence as text, using digits from 0 to 7.

Magical FDS Plug also includes LFO, FM, and Off modulation modes, ADSR envelopes for both the carrier and modulator, velocity and pitch bend support, and a switchable low-pass filter modeled around the original hardware’s roughly 2 kHz output filter.

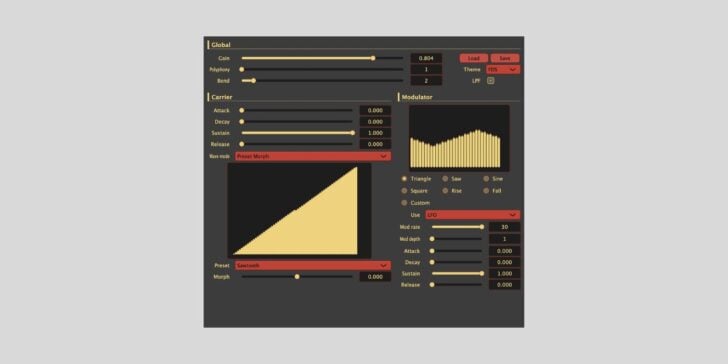

The interface is split into Global, Carrier, and Modulator sections. Global handles gain, polyphony, pitch bend range, themes, preset loading, and the hardware-style low-pass filter, while the lower half is where you build the carrier waveform and modulation behavior.

Magical FDS Plug is open-source and distributed under the GPLv3 license, with the source code available on GitHub. The download also includes demo presets that recreate the FDS parts from YMCK’s demo song.

Magical FDS Plug runs on macOS 10.13 or later in AU and VST3 formats, and on Windows in VST3 format.

Download: YMCK Magical FDS Plug (FREE)
